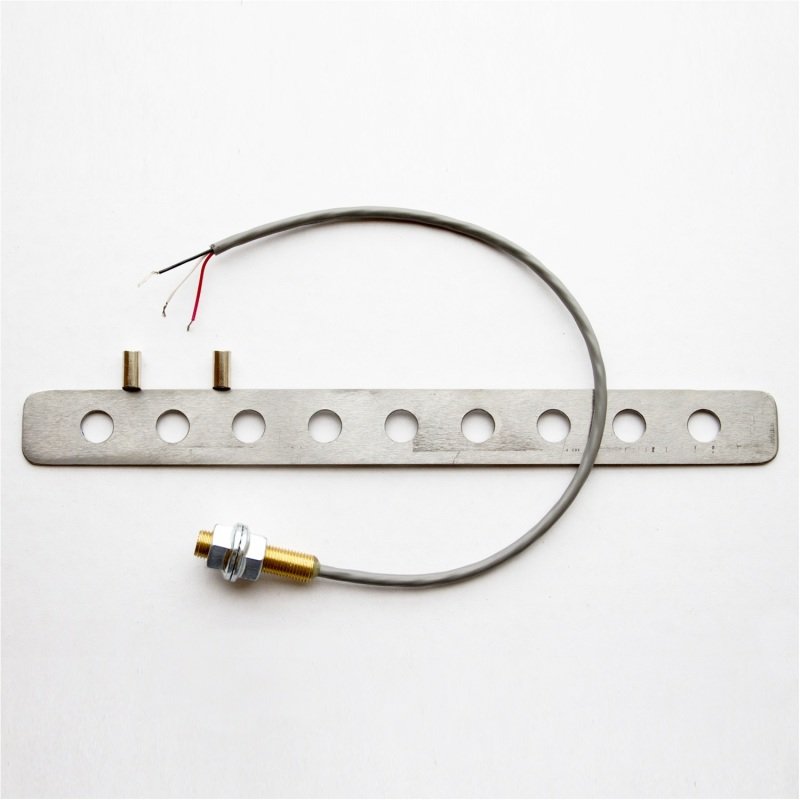

This Universal Speed Sensor For Axle Or Driveshaft Mounting Is Designed For Use Specifically With Autometer Electric Programmable Speedometers, Providing A 4 Pulse Per Revolution, 12V Square Wave Signal And Is A Great Problem Solver For Applications Requiring Driven Wheel Speed Where Conventional Gearbox Speed Sensor Mountings Arent Possible. See Instructions For Installation Details.
| Weight | 1.3 lbs |
|---|---|
| Dimensions | 12.2 × 6.4 × 4.6 in |
Flat Panel Digital Dash Display, CD-5G non-logging, GPS enabled racing dash, CAN input only, 5-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included, Does Not Include Buttons (See PN 30-3610)
The CD-5 Carbon receives channels from two independent CAN bus inputs and it does not require special modules to read AEM and/or 3rd-party CAN signals. We have validated it to communicate with over 250 non-AEM devices, 2008-up stock ECUs via the OBDII port (see Supported Apps Tab), and the CD-5 Carbon can be added to any vehicle with the addition of our 22 Channel CAN Sensor Module. The CD-5 Carbon is ECU CAN ready and does not require external modules for CAN to CAN communication, just load your configuration and go! All channels can be named in virtually any language so that the information displayed makes sense to the user when displayed, whether on the main screen dashboard monitor or warning alerts.
2-inch No-Weld O2 Sensor Mount, Allows Users to Install O2 Sensor(s) Without Welding a Bung to Exhaust Pipe
AEM Digital Oil Pressure Gauges combine unsurpassed accuracy, speed and control with an easy-to-read digital LED interface that displays oil pressure in 1 PSI increments, and a sweeping LED “needle” that lines the edge and moves as oil pressure changes from 0 to 150. The oil pressure gauge’s digital readout will automatically increase and decrease in intensity due to the built in ambient light sensing photocell.
