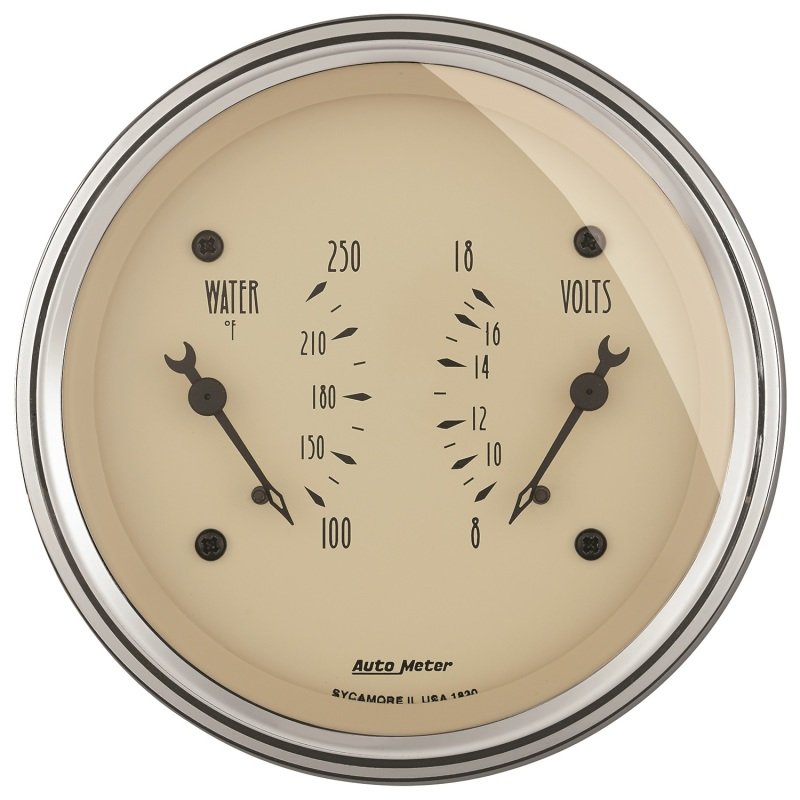

A Perfect Solution For Unique Dash Layouts, Autometers Dual Function Water Temp And Voltmeter Gauge Allows For A Flexible Dash Layout And A Clean Look Thats Easy On Dash Real Estate. Combing Individual Air Core Meter Movements Into One Compact Housing, You Get The Same Durability And Accuracy Youve Come To Expect From Autometers Standalone Instrumentation.The Voltmeter Reads Between 8 And 18 Volts On Negative Ground Electrical Systems, And An 1/8″ Npt Temperature Sender Is Included.
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 6.3 × 6 × 5.3 in |
The CD-5 Carbon receives channels from two independent CAN bus inputs and it does not require special modules to read AEM and/or 3rd-party CAN signals. We have validated it to communicate with over 250 non-AEM devices, 2008-up stock ECUs via the OBDII port (see Supported Apps Tab), and the CD-5 Carbon can be added to any vehicle with the addition of our 22 Channel CAN Sensor Module. The CD-5 Carbon is ECU CAN ready and does not require external modules for CAN to CAN communication, just load your configuration and go! All channels can be named in virtually any language so that the information displayed makes sense to the user when displayed, whether on the main screen dashboard monitor or warning alerts.
The OBDII output simulates an auxiliary ECU signal when plugged into a vehicle’s OBD port, which requires a unique address from the other ECUs already on a vehicle’s network. AEM’s default OBDII CAN address will work with most popular vehicles and adjustments should not be necessary. However, AEM has provided OBDII address programmability through the buttons on the gauge face if a different address other than the default address is required, allowing users to program ECU #, Parameter Identification (PID), Message Identifier, and Bit Rate.
K-Type Closed Tip Thermocouple 10ft Wiring Extension Kit. Includes: 10ft Wiring Extension, 2 X 4-40 Hex Nut, 2 X 4-40 Screw & 6 in Heat Shrink Tubing
Flat Panel Digital Dash Display, CD-5L logging, non-GPS racing dash, CAN input only, 5-inch diagonal screen, carbon fiber enclosure, wiring harness included, Does Not Include Buttons (See PN 30-3610)
